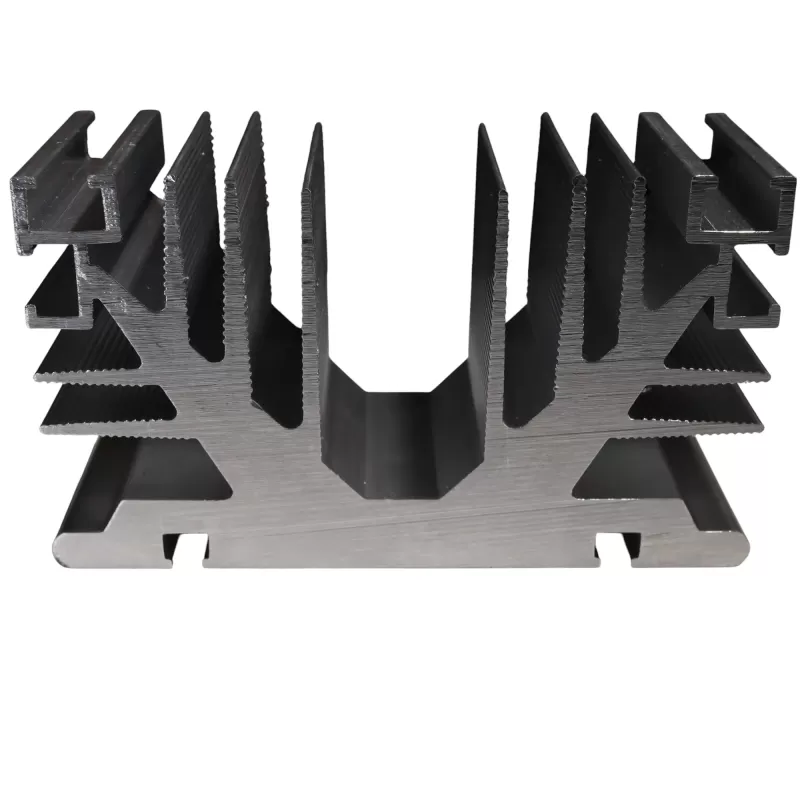

Mini 80AD Aluminium Heat Sink - 50mm - 550 Grams - Natural - V1-THS-13-50-W

Short Description: Mini 80AD Aluminium Heat Sink of length 50mm and weight of around 550 grams for industrial applications, Class A audio amplifiers and general purpose use.

Description:

This profile is referred to as Mini 80AD heat sink by most manufacturers. This profile is similar to the regular 80AD heat sinks and has a good heat dissipation characteristics.

This natural mini 80AD aluminum heat sink of length 50mm with model number V1-THS-13-50-W is suitable for mounting IGBT and BJT that require high heat dissipation and is usually used in industrial applications. It is also used in other general purpose applications where high heat dissipation is required. This heatsink can also be used with transistors in Class A audio amplifiers. This heatsink has a base thickness of 15mm suitable to mount any type of transistor. It approximately weighs about 550 grams.

Clients usually purchase this heat sink from us for industrial applications.

Note that this heat sink is also available in any required custom size as per the client's requirement. Call us on 06364241589 for custom sized heat sinks.

Note that there could be 1mm-2mm variation in the heatsink size.

Specifications:

Model: V1-THS-13-50-W

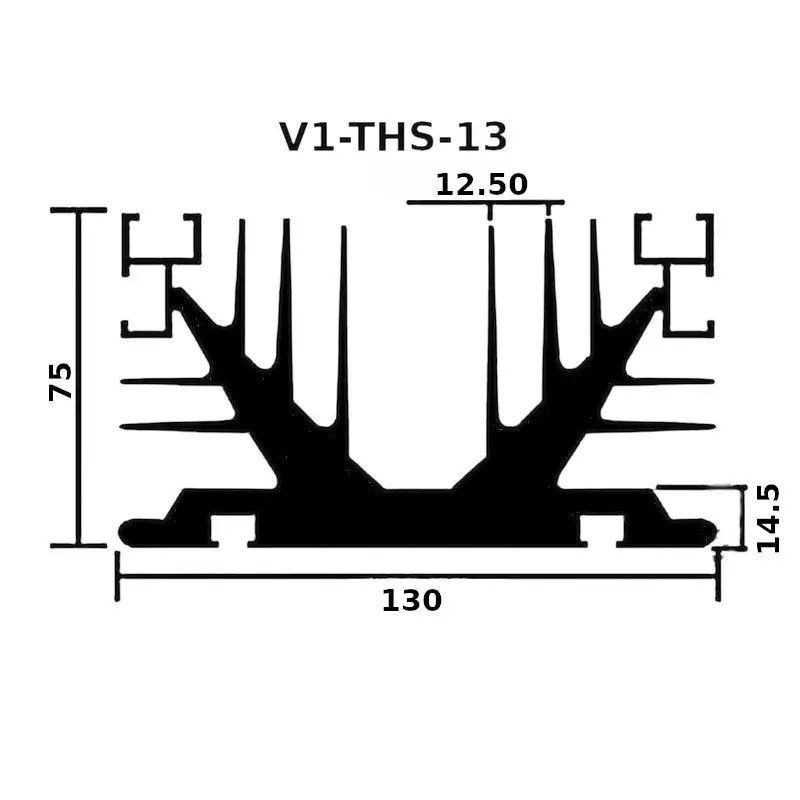

Dimension in MM: 50x130x75
Weight: 550 Grams
Color: Natural Aluminium
Coating: Natural
Material: Aluminium
Number of Blades: --
Blade Thickness: 3MM
Base Thickness: 15MM
Thermal Characteristics:
Application: Industrial Applications, Class A audio amplifiers, General Purpose
