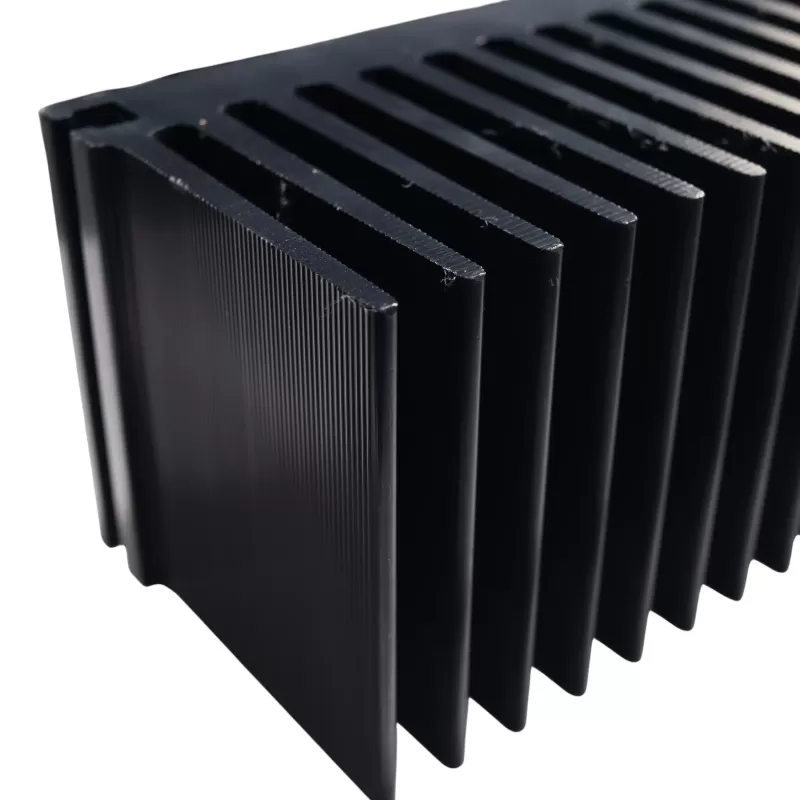

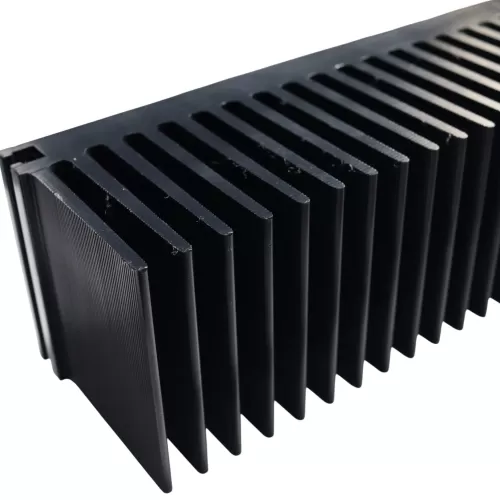

100mm x 215mm x 75mm Black Aluminium Heat Sink - 2110 Grams - V1-THS-56-100-B

Short Description: 100mm x 215mm x 75mm black aluminium heat sink of weight around 2110 grams for industrial applications, audio amplifiers and general purpose use.

Description:

This 100mm x 215mm x 75mm black aluminum heat sink of weight around 2110 grams with the model number V1-THS-56-100-B is suitable for a wide range of industrial and consumer applications. It has a very good heat dissipation characteristics and can be used to mount BJT, MOSFET, IGBT and Diodes of various power ratings where high heat dissipation is required. It can also be used with Class A and Class AB audio amplifiers.

Clients usually purchase this heat sink from us for industrial applications or building high power audio amplifiers.

Note that this heat sink is also available in any required custom size as per the client's requirement. Call us on 06364241589 for custom sized heat sinks.

Note that there could be 1mm-2mm variation in the heatsink size.

Specifications:

Model: V1-THS-56-100-B
Dimension in MM: 100x215x75
Weight: 2110 Grams
Color: Black
Coating: Black
Material: Aluminium
Number of Blades: 19
Blade Thickness: 4mm
Base Thickness: 15mm
Thermal Characteristics:  --
Application: Industrial Applications, General Purpose, UPS, Inverters, Medical Equipment, Audio Amplifier
